Standard:

Comply with ANSI/EIA  RS-310-D、IEC297-2、DIN41494；
PART1、DIN41494；PART7 Standard.

Feature:

Knock down SPCC steel poofile frame,flat pack could reduce package volume up to 70%;
Save half cost of shipping and storage;
Delivered by one single person available;
Convenient to be installed in narrow space;
Easily be assembled in 15 minutes19" standard installation with adjustable dimension;
Hexagonal reticular high-density vented front door(patent)& rear door enable equipment protection ventilation and
reliable operation,with turning angle above 120 degress and ventilation rate above 71%

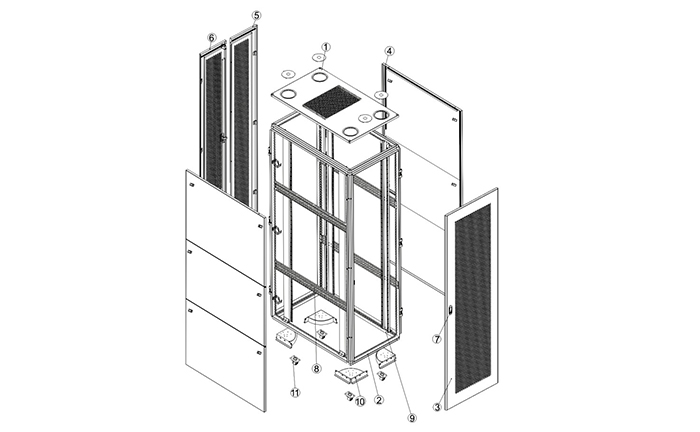

There section side panels,each panel can be removed or installed separately;

Loading capacity:

Static loading:1000KG(with adjustable feet).

Degree of protection:

IP20.

Main material:

SPCC cold rolled steel;
Thickness of Steel:mounting profile:2.0mm;tray:2.0mm;
mounting angle:1.5mm; others:1.2mm

Surface finish:

Frame:degreasing, phosphoric, dip-coat primed,
powder coat;
Others:degreasing,phosphoric,powder coat
