Feature:

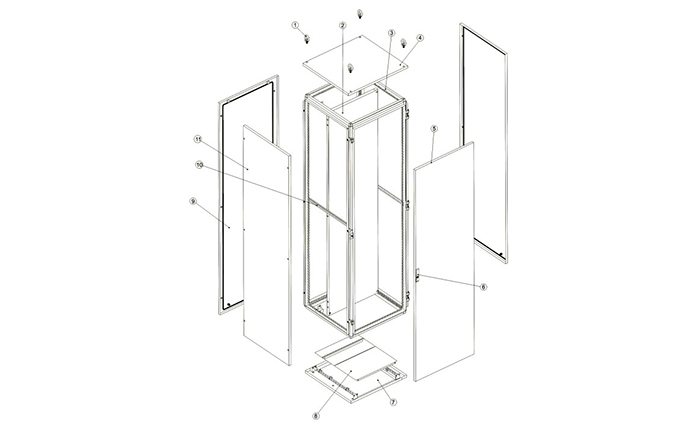

Strong and stable profiled bar with prepared mounting holes (integrated size:25mm)
Stable structure, exquisite image, spacious inner mounting space,common used accessories;
Three point bolted luxury lock, side panels(optional) and back panels are fixed by screws;
Door can be open to 130 degrees, open left or right freely;
All-round Polyurethane Gasket between door and Frame with good sealingperformance;
3-sctioned bottom panel,easy to enter cables;
M8 earthling pole mounted on the body, door and the mounting panel;
A whole mounting panel, can be adjusted.
Degree of protection:
Comply with IEC60529,EN60529/10.91 and GB4208-93 standard, Ip55
Material:
SPCC cold rolled steel;
Thickness:mounting panel:2.5mm, front door:2.0mm;frame:1.5mm
Back panel:1.5mm;others:1.2mm
Surface finish:
Body of enclosure,frame & doors:
Degreasing, phosphoric, powder coated, static powered with
textured stove enamel RAL7035
Mounting panel(SPCC cold rolled steel):
Degreasing, picking, phosphoric, powder coated, static powdered with flat
coating RAL2000
Use:
Available for mounting various industrial components, controlling and cables entry.
