Standard:
Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、
DIN41494;part7、GB/T3047.2-92 standard.
Feature:

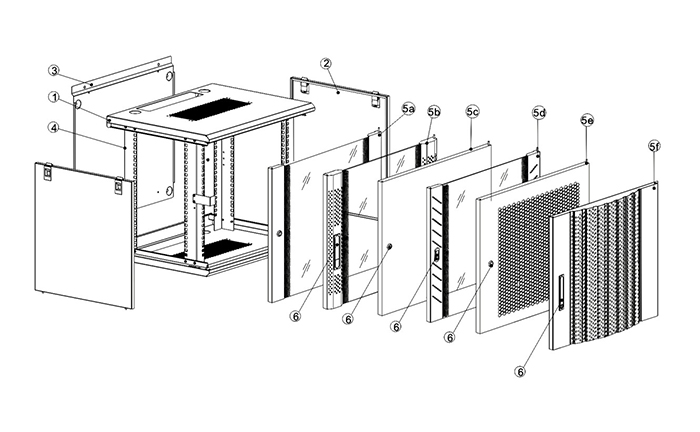

Knock down structure, flat pack could reduce package volum up to 70% Save half cost of shipping and storage;
Easily be assembled in 5 minustes;
19"standard installation;
Easy mounting instanllation(patent);
Knock out hole for entering cable on both of top cover and bottom panel:
Top installation fan unit(optional);
Turning angle of front door is over 180 degrees.
Loading Capacity:
60KG.
Material:
SPCC Cold Rolled Steel:
Thickness:Mounting profile:1.5mm,side panel:0.8mm,others:1.2mm
Surface finish
Degreasing,phosphoric,powder coated.
